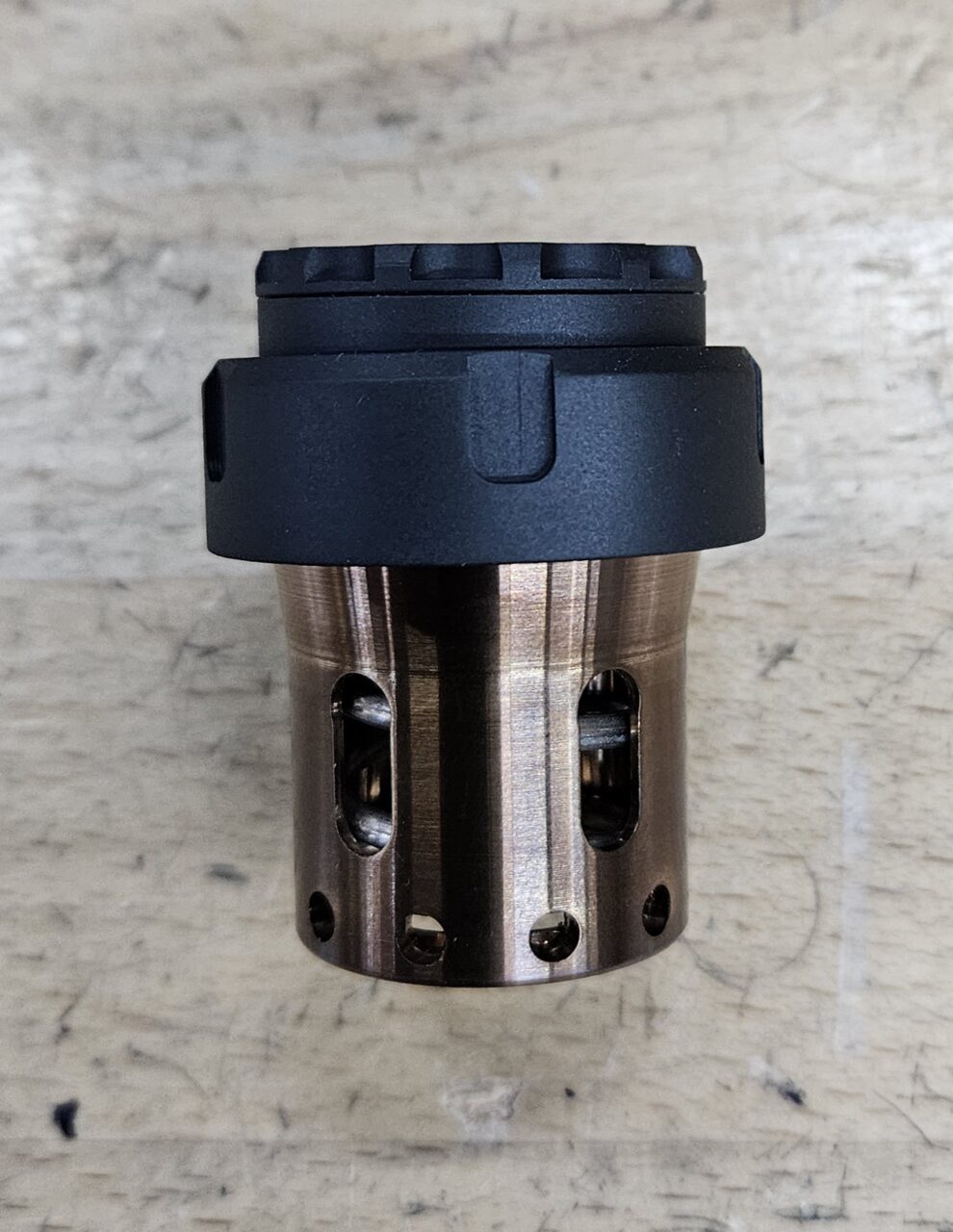

Charlie/Saker BPISTIN Booster Assembly

$165.00

2 in stock

Reserve for pickup

Reserve this item for in-store pickup by paying a $25 deposit ($1 for items priced under $25). The deposit will be credited toward the final purchase price.

You have 15 minutes to pay the deposit. Once your payment is confirmed, we will reserve the item for you for 72 hours. All required checks will be completed when you pick up the item.

**The deposit is non-refundable. By submitting this form, you agree to these terms.**

Payment methods
SKU NFAAccessory_ECCOMACHINE_CharlieBOOSTER

Description

These booster assemblies install in your Charlie/Saker pattern 36M or 46M suppressor to allow the use of BPISTIN pattern booster pistons, which includes:

-All ECCO Machine booster pistons

-All SilencerCo booster pistons

-All Kaw Valley Precision booster pistons

-Rugged Obsidian 9 & 45 booster pistons

-Dead Air Odessa booster pistons

-OSS Rad 9 & 45 booster pistons

-Current YHM booster assembly  pistons

-Griffin Cam Lok or EZ Lok pistons for SilencerCo/Rugged pattern

They are also female threaded for 1.125-28 Alpha pattern mounts & adapters, including Griffin Cam Lok 1.125-28 Direct Thread adapter, Griffin Plan A Alpha, SilencerCo AC2447 & AC2448 3 lug adapters, SilencerCo ASR Alpha, SilencerCo (Alpha) Harvester 300 Direct thread adapters, Q Plan B Alpha and others.

The housings and nuts are made from 17-4 H900 stainless steel, the retainer caps are 6Al-4V Gr. 5 titanium.



Charlie/Saker booster specs:

Overall length w/cap: 1.85″

Booster nut thickness: .5″

Retainer cap protrusion behind Booster Nut: .13″

Booster nut diameter: 1.5″

Body diameter: 1.08″

Thread tenon length: .43″

Distance from flange shoulder to front of booster: 1.32″

Assembly weight W/O Piston: 3.2 ounces



Piston shank protrusion behind cap (all boosters): 1/4″ with standard 2″ long piston.

*Please note, the piston retainer must be removed before the Charlie nut can be removed from or installed over the booster housing tail.  These also ship with a silicon band that prevents the nut from moving about on the housing tail in transit and scratching it; that band is meant to be discarded*
